A Snow Cap in One Corner Is Not the Same as an Evenly Cold Evaporator

The cabinet stayed near 38-40°F while frost concentrated in one area. That physical pattern moved the discussion toward a sealed-system leak rather than a temperature sensor or board.

Wine Cooler Viking Warm With Localized Snow Cap

What the frost pattern contributed

  • The wine cooler was warmer than intended at approximately 38-40°F.
  • Snow or heavy frost appeared only in one evaporator corner.
  • The technical reply identified a refrigerant-leak direction.
  • Sensor and control-board replacement were rejected as explanations for the localized pattern.

A similar symptom can have a different cause on another wine cooler. Door leakage, airflow and defrost conditions must be distinguished before a sealed-system conclusion is finalized.

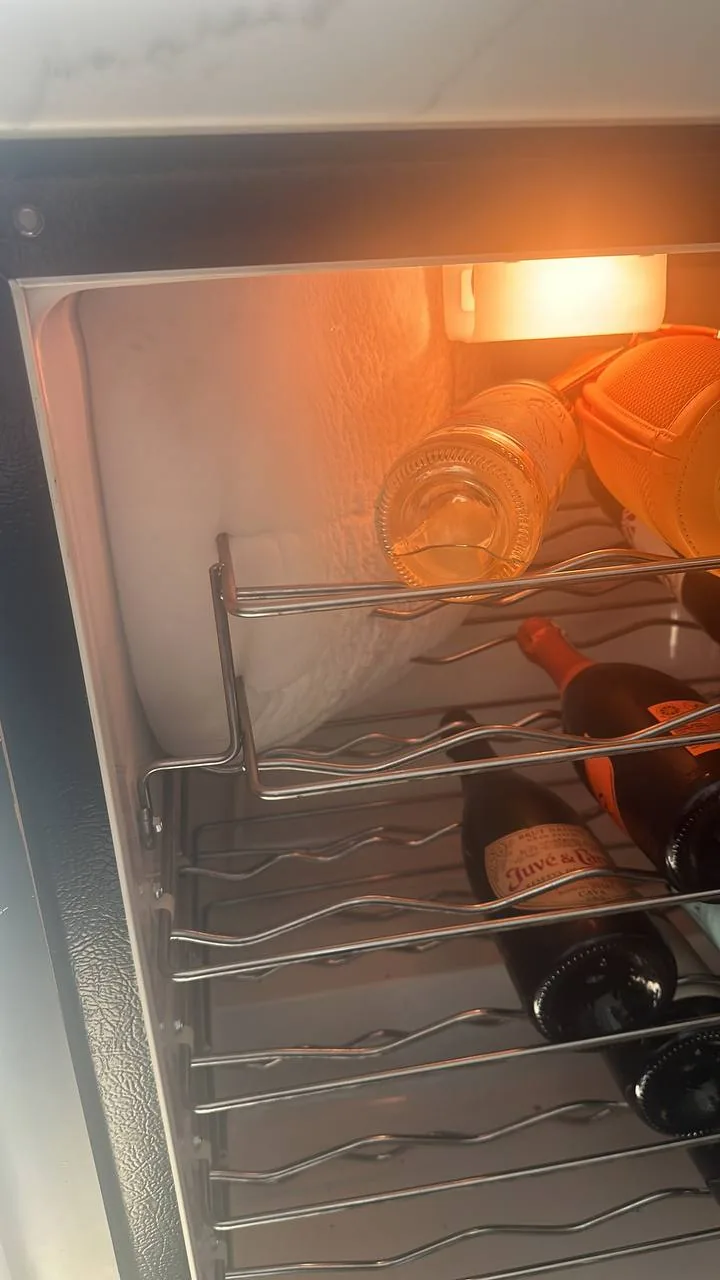

Frost concentrated in one evaporator corner while the wine cabinet remained around 38–40°F.
Frost concentrated in one evaporator corner while the wine cabinet remained around 38–40°F.

Why a compressor was not the automatic repair

The source asked whether the compressor should be replaced. The reply was no: if a visible leak pattern exists, the leak location and system condition come first. A compressor cannot correct refrigerant escaping elsewhere.

The thread did not report a pressure test, leak location or completed sealed-system repair.

Safe evidence to preserve

  • Photograph the frost pattern before defrosting.
  • Measure cabinet temperature with a separate thermometer.
  • Note fan operation and whether the door seals.
  • Record how quickly the localized frost returns.
Refrigerant safety: do not add refrigerant or open the system from a frost photograph. Leak confirmation and sealed-system repair require qualified equipment and procedures.
