C3 Appeared After the Washer Stopped With 11 Minutes Left

The machine made an unusual sound and did not finish the cycle. The useful lesson was to separate the motor-system parts and mechanical load before ordering an inverter board.

Samsung C3 Stops Mid Cycle

What the field case established

  • The washer stopped with 11 minutes remaining.
  • An abnormal sound accompanied the intermittent stop.
  • The display showed C3.
  • The discussion considered an inverter-board interpretation but did not verify it for an exact model.

The same symptom can have a different cause on another washer. C3 is a reason to obtain the full model and service definition, not proof that one electronic part has failed.

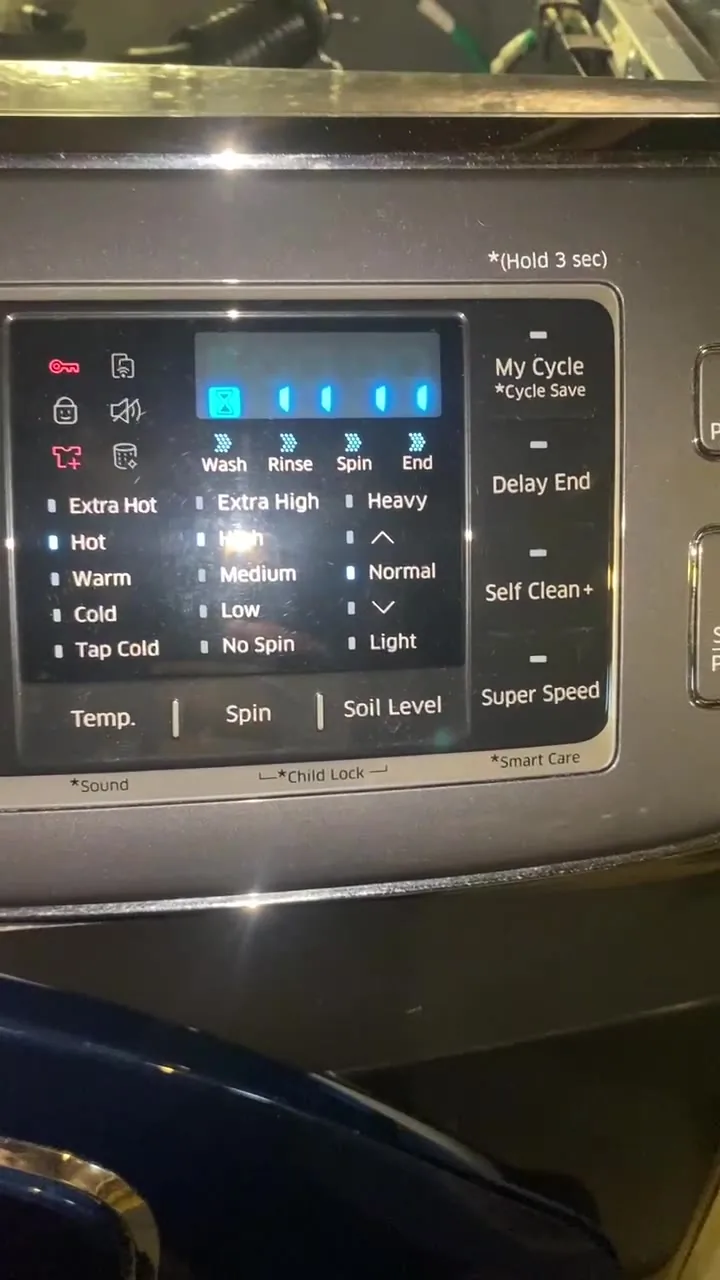

The washer display during the C3 stop with 11 minutes remaining in the cycle.
The washer display during the C3 stop with 11 minutes remaining in the cycle.

Why the motor, inverter and Hall sensor were separated

The conversation initially mixed the Hall sensor with the inverter. A technician corrected that distinction: the Hall sensor supplies motion feedback, while the inverter controls the motor. The drum and bearings were also kept in the diagnosis because excessive mechanical resistance can change how the motor system behaves under load.

A defensible next test

  1. Record the complete model and the exact point in the cycle where C3 appears.
  2. With power disconnected, check whether the drum turns smoothly and listen for bearing noise.
  3. Use the exact wiring diagram to identify the motor, feedback sensor and inverter connections.
  4. Test the indicated circuit before replacing any board.
Electrical safety: motor and inverter diagnosis can involve hazardous voltage and stored energy. Do not probe an energized inverter or bypass the door lock; use qualified service.
