The New UI Board Did Not Bring the Selector Back

The panel reacted once and then stopped again. The useful evidence came from other cases where the apparent UI fault started elsewhere.

Samsung Cycle Selector Not Responding

What the original washer did

  • Rotating the cycle selector did not change the selected cycle.
  • Most of the panel also failed to respond.
  • The replacement UI board produced the same complaint.
  • No inverter-related code was reported.

A similar symptom can have a different cause on another washer. A dead-looking interface does not prove that the interface board itself is defective.

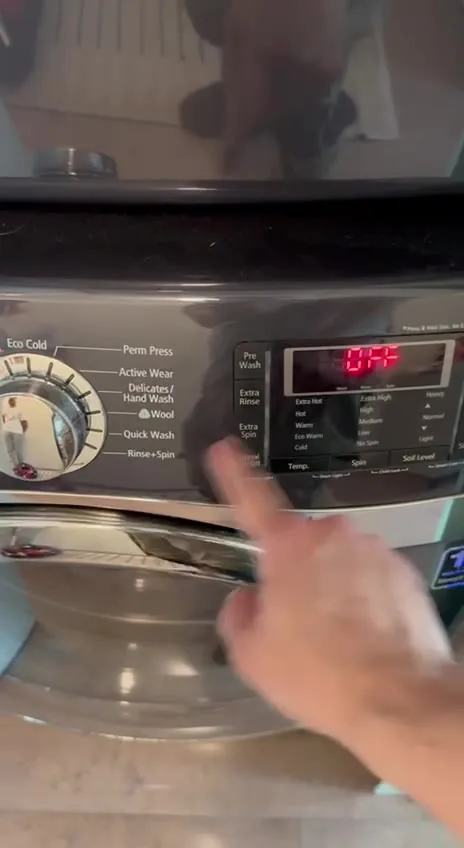

The control panel shown while the source demonstrated the selector complaint; a still frame alone cannot show responsiveness.
The control panel shown while the source demonstrated the selector complaint; a still frame alone cannot show responsiveness.

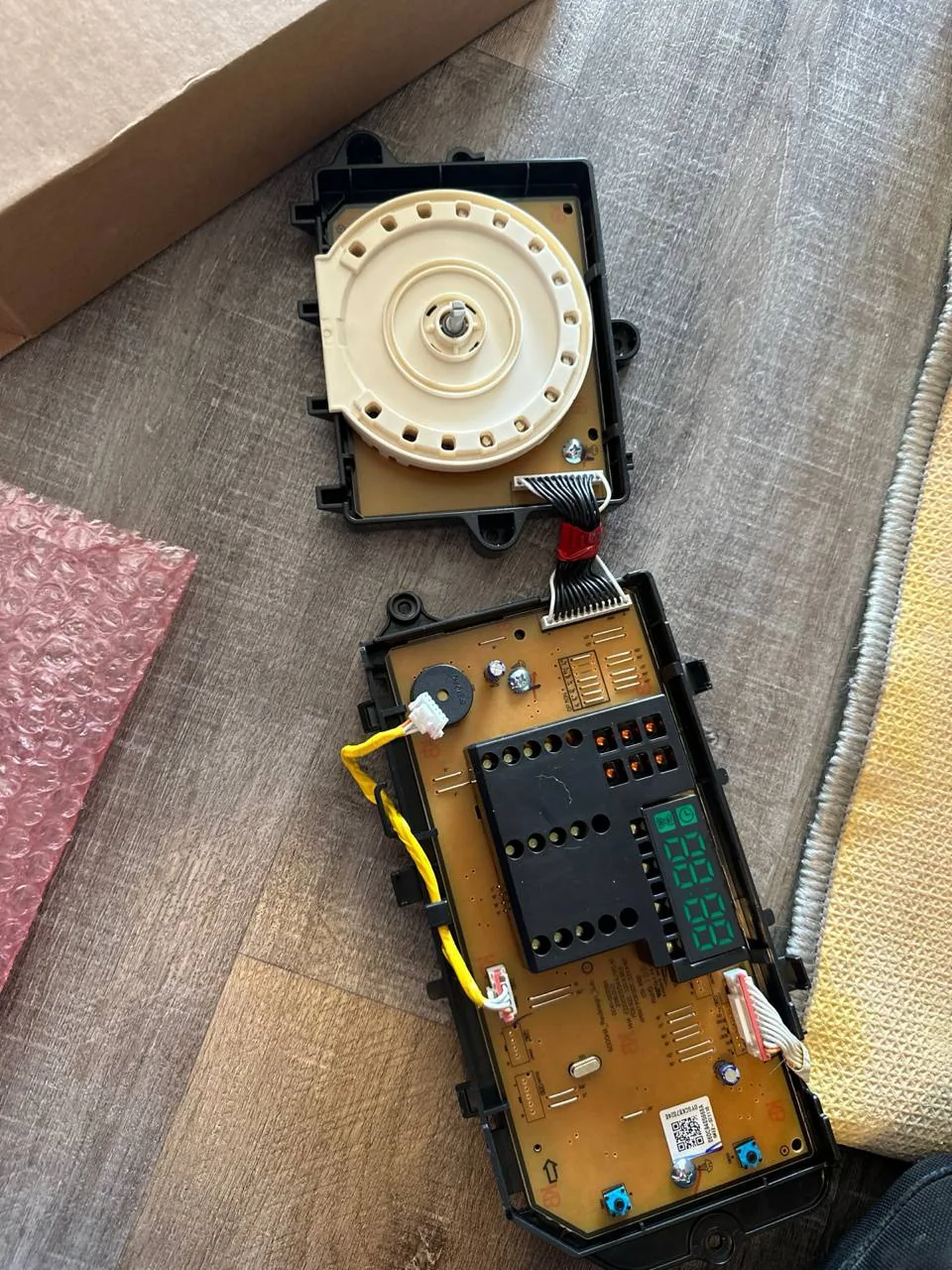

The selector and UI-board assembly examined for a stuck control or pinched-harness branch.
The selector and UI-board assembly examined for a stuck control or pinched-harness branch.

Two branches supported by comparable cases

Evidence from the discussion

Inverter communication

One technician reported the same no-code behavior resolved after inverter-board replacement and suggested checking status LEDs on both boards.

Button or harness loading

On another washer, the panel worked while removed and failed again after reassembly, making a stuck button or pinched wire a stronger branch.

How to avoid replacing both boards by default

  1. Record which controls still respond, including child lock.
  2. Inspect connectors and harness routing before fitting another board.
  3. Check board status indicators and documented communication tests.
  4. Compare panel behavior installed versus mechanically unloaded.
  5. Replace only the branch supported by those observations.
Electrical safety: disconnect power before removing the UI or rear cover. Do not probe energized inverter or control-board circuits without the correct service procedure.
