The Left Side Had No Flame, but the Burner Was Clean

The oven was only months old and broil worked normally. Repositioning the bake burner corrected the flame without replacing an ignition component.

Gas Oven Viking Bake Flame Missing One Side

What narrowed the problem to the bake assembly

  • The Viking oven was approximately five months old and lightly used.
  • The left side of the bake burner did not carry flame.
  • Broil operated normally.
  • The bake burner and its orifice were reported clean.

A similar symptom can have a different cause on another oven. Uneven flame can also involve pressure, conversion, obstruction or burner damage.

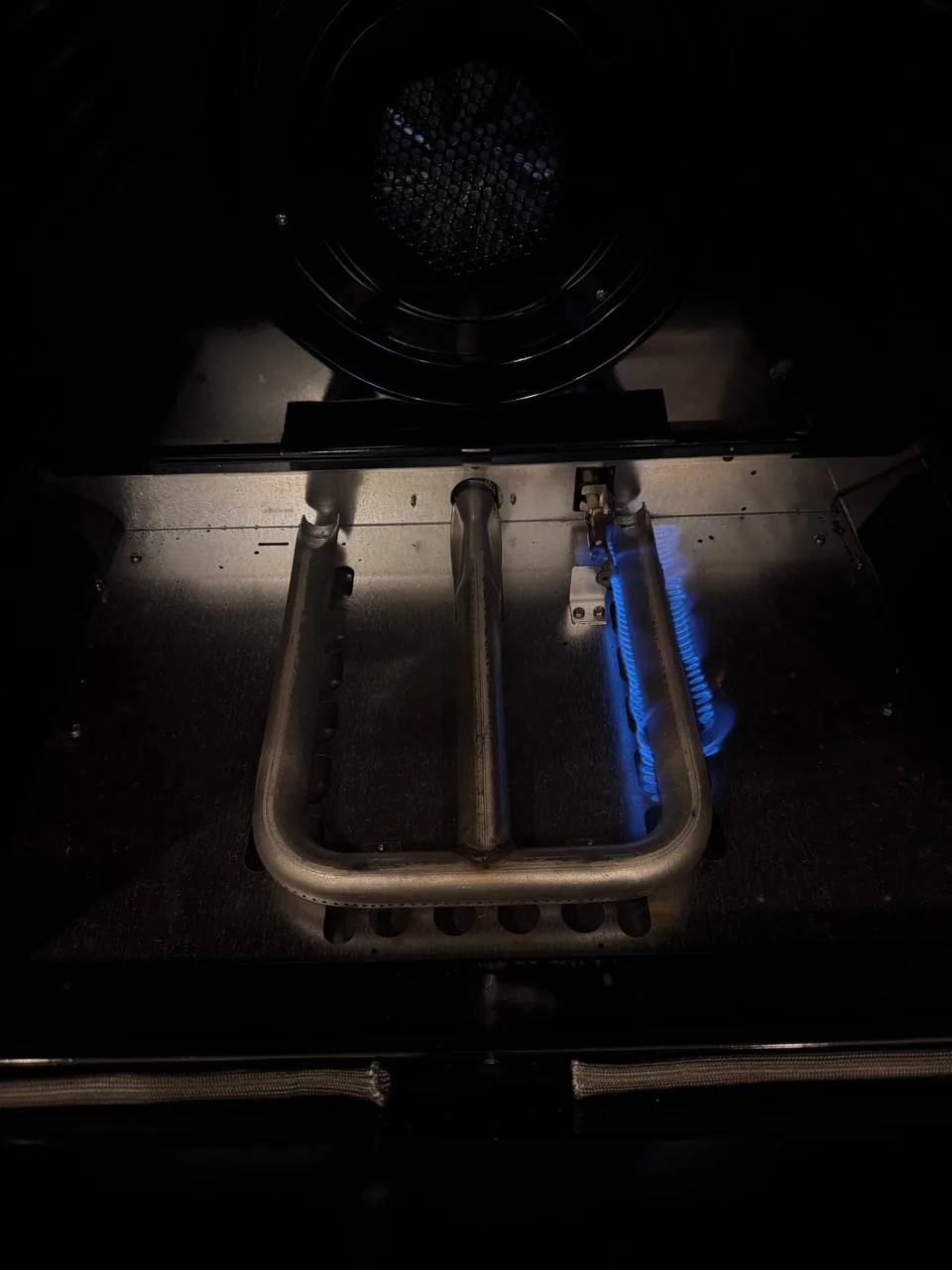

The bake flame missing from one side even though the burner and orifice were clean.
The bake flame missing from one side even though the burner and orifice were clean.

The small adjustment that changed the flame

The technician moved the burner slightly and reported that the flame immediately became normal. Because the appliance was nearly new, the source treated incomplete burner seating or assembly alignment as the likely cause.

The thread did not record a model number or long-term follow-up, so the result should not be generalized to every one-sided flame complaint.

What should be documented before adjustment

  1. Compare bake and broil behavior.
  2. Record flame distribution before touching the assembly.
  3. Verify burner engagement at the orifice and mounting points.
  4. Confirm the appliance fuel type and pressure if reseating does not correct it.
Gas safety: stop using an oven with incomplete, lifting or delayed flame. Shut off gas and power; burner seating, leak testing and combustion verification require qualified service.
