The Panel Was Dead, but the Board Was No Longer Available

The touch interface did not respond and the compressor had no power. Before condemning an unavailable board, the supply and connector path still needed proof.

Ice Machine Ice Maker U-Line Dead Touch Panel No Compressor Power

What the original case established

  • The appliance was a U-Line ice maker.
  • The touch panel did not respond.
  • The compressor did not receive power.
  • U-Line reportedly said the board was discontinued.

The same symptom can have a different cause. A dead interface can come from incoming power, a connector, harness, low-voltage supply or the control itself.

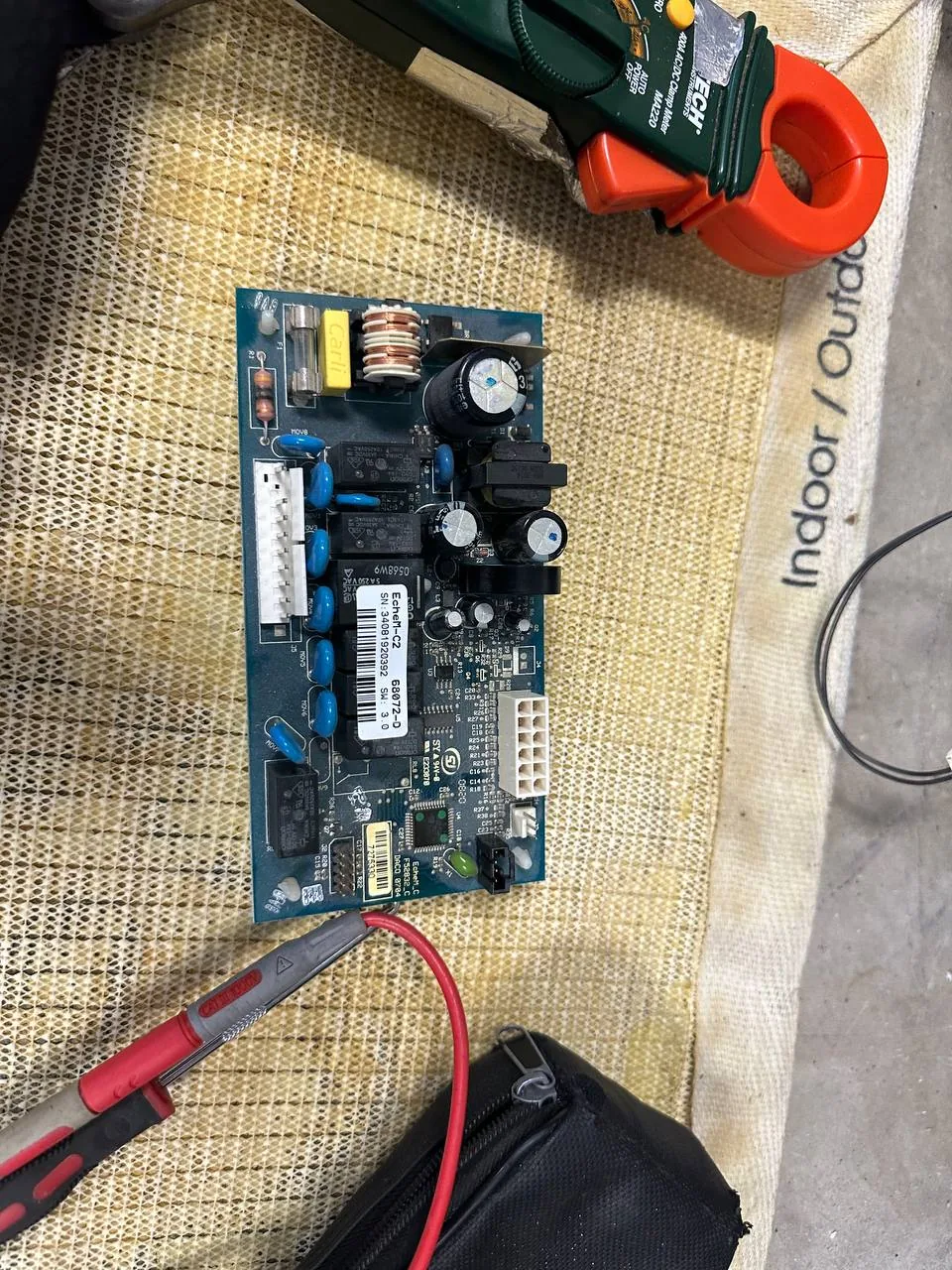

The U-Line control board tested after the touch panel stayed dead and the compressor received no power.
The U-Line control board tested after the touch panel stayed dead and the compressor received no power.

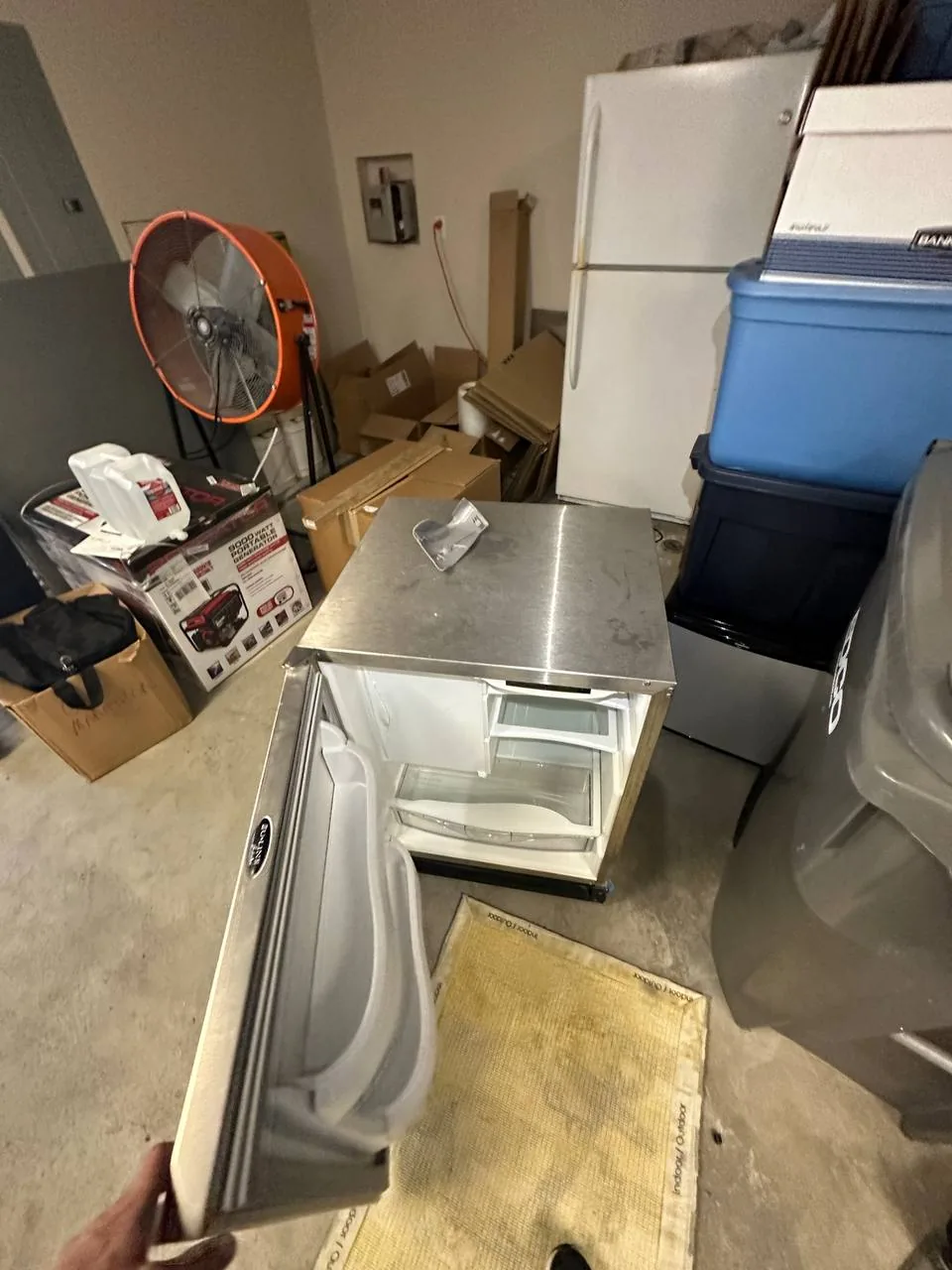

The U-Line ice machine opened during the discontinued-board diagnostic path.
The U-Line ice machine opened during the discontinued-board diagnostic path.

What a comparison case added

A second technician described a similar U-Line failure in which a black connector had burned and the board had no power. He suggested board repair when a replacement could not be sourced.

That does not prove the same connector failed in the original machine. It identifies a specific inspection branch that should be documented before the original control is shipped away or replaced with a used part.

Information a board rebuilder will need

  • Full appliance model and serial number.
  • Every number and revision printed on the board.
  • Clear photographs of both sides and all heat-damaged connectors.
  • Measured board inputs and missing outputs recorded by a technician.
Electrical safety: a dead panel does not mean the cabinet is de-energized. Disconnect power before connector inspection and do not repair a burned board or power connector without qualified electronic and appliance service.
