A Wire Between Two Relays Was Burned as the Compressor Failed to Start

The exact KMD-530MAH model and visible damage make this more specific than a generic compressor no-start.

Ice Machine Ice Maker Hoshizaki kmd-530mah

What the visible damage established

  • The ice machine was a Hoshizaki KMD-530MAH.
  • The compressor did not start.
  • A conductor between two relays was visibly burned.
  • The damage was interpreted as heating from a poor contact.

The same symptom can have a different cause on another ice machine. Burned wiring is an important clue, but the relay, terminal and compressor circuit still require testing.

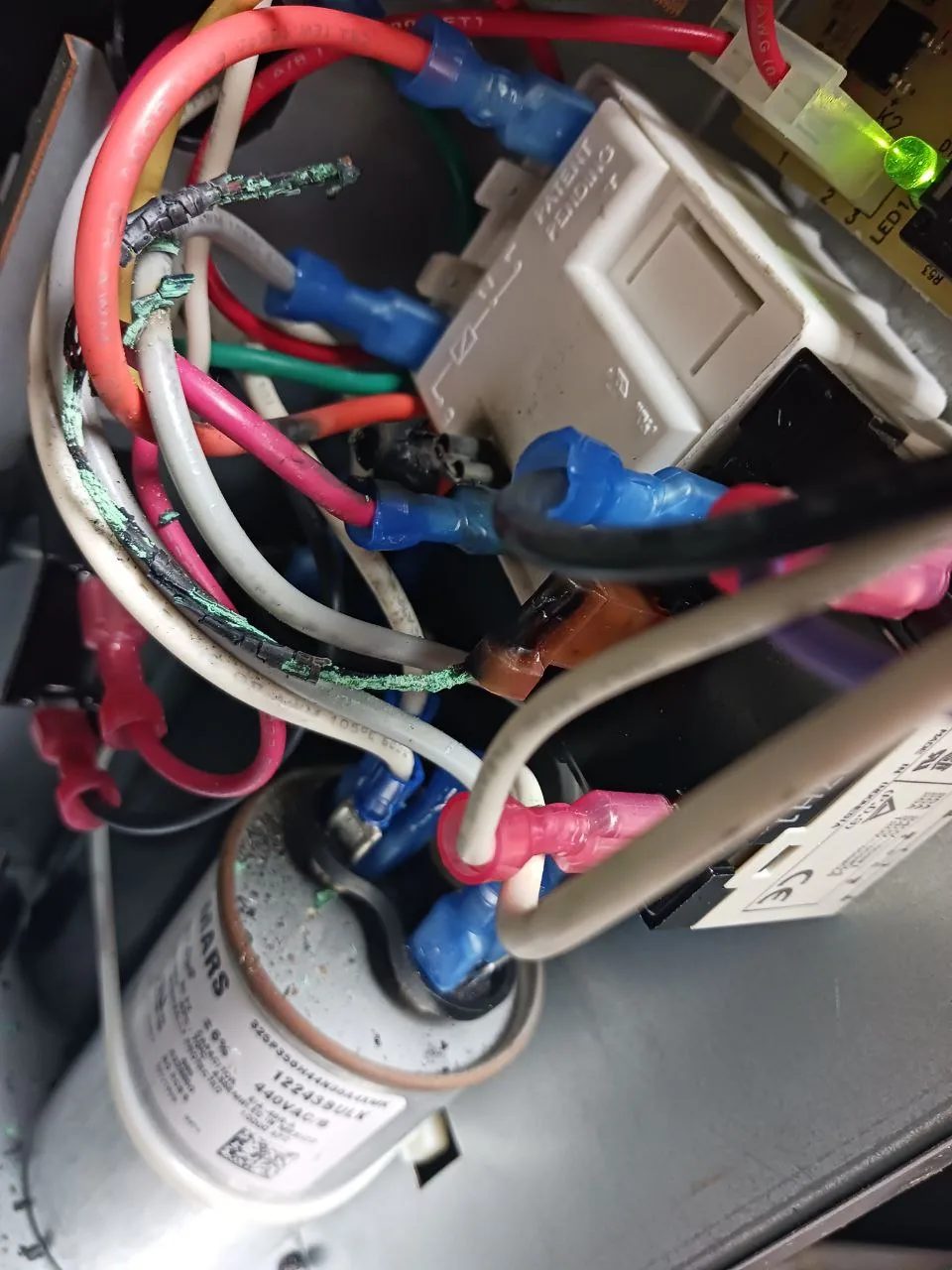

The visibly heat-damaged conductor and relay area found during the KMD-530MAH compressor no-start diagnosis.
The visibly heat-damaged conductor and relay area found during the KMD-530MAH compressor no-start diagnosis.

Why replacing only the wire may be incomplete

A loose or resistive relay terminal can heat the conductor until insulation and metal are damaged. Installing a new wire without correcting the contact can reproduce the failure. Conversely, the source did not prove that the relay was the only reason the compressor would not start.

What qualified service should inspect

  1. Isolate power and document every damaged terminal.
  2. Check relay contacts, connector tension and surrounding heat damage.
  3. Verify the compressor start circuit before energizing replacement wiring.
  4. Replace all heat-damaged conductors and terminals to model specifications.
Fire and high-voltage safety: do not re-energize equipment with burned compressor wiring. Relay and compressor tests require qualified commercial-refrigeration service.
