New Latches Did Not Stop the Door-Open Beep
Two matching GE dishwashers behaved the same way. Comparable cases traced the symptom to latch alignment after the cabinet top had shifted.
What had already been replaced
- Both appliances were identified as GE GDT605PSM0SS.

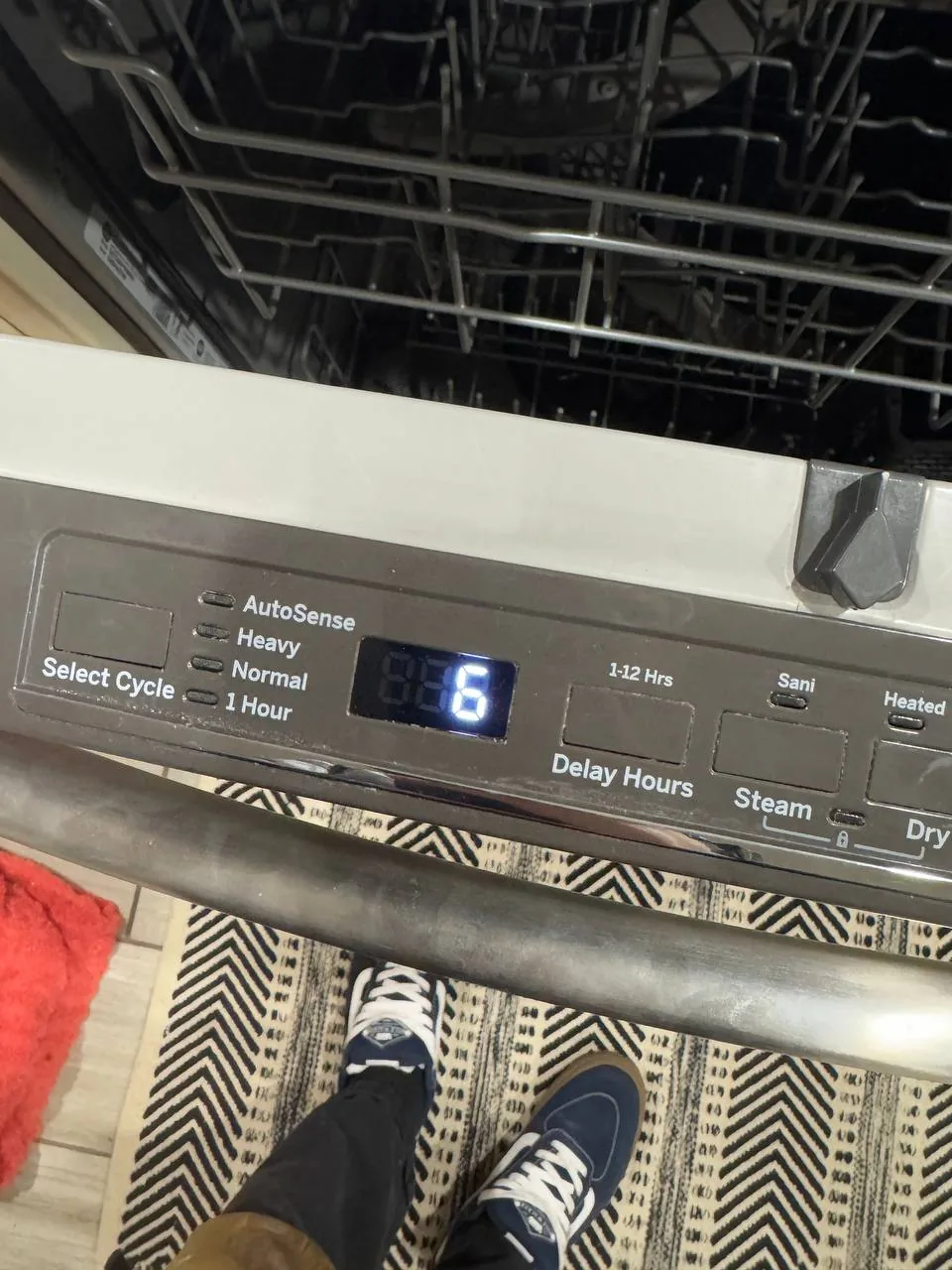

- After Start, each beeped as though the door remained open.
- The door latches had been replaced and the wiring checked.
- A door board had been replaced on one machine and a lower board on the other.
The same symptom can have a different cause on another machine. A new latch cannot correct a door that does not press the switch far enough.
The test that separates alignment from an open switch
A technician described removing the latch from its installed position while leaving it connected, then placing it against the closed door. When the contacts closed in that position, the electrical path worked and the installed geometry became the lead.
Several comparable machines were corrected by slightly lowering or reshaping the top of the dishwasher cabinet and maintaining clearance below the countertop. The discussion also recorded one of the original pair operating after lower-board replacement, so the outcomes were not identical.
What to record before ordering another board
- Confirm whether the latch contacts close when the latch is correctly pressed.
- Compare its installed height with the door strike.
- Inspect cabinet-top deformation and countertop pressure.
- Verify stable mounting and door closure after any alignment correction.
- Return to wiring and board diagnosis only if the switch signal remains incorrect.
