A Working Heater Still Does Not Prove the Complete Heat Circuit

The wiring path can include a thermal fuse or high-limit device before the heater. Its temperature rating is a safety specification, not a convenient universal choice.

GE No Heat

What the earlier failed repair added

The technician described an earlier GE no-heat case in which a control board and WD21X10519 flood switch had been replaced, yet the heating complaint remained. The later diagnosis returned to a fuse in the heater path.

A similar symptom can have a different cause on another dishwasher. This history shows why heater continuity alone does not clear every series safety device.

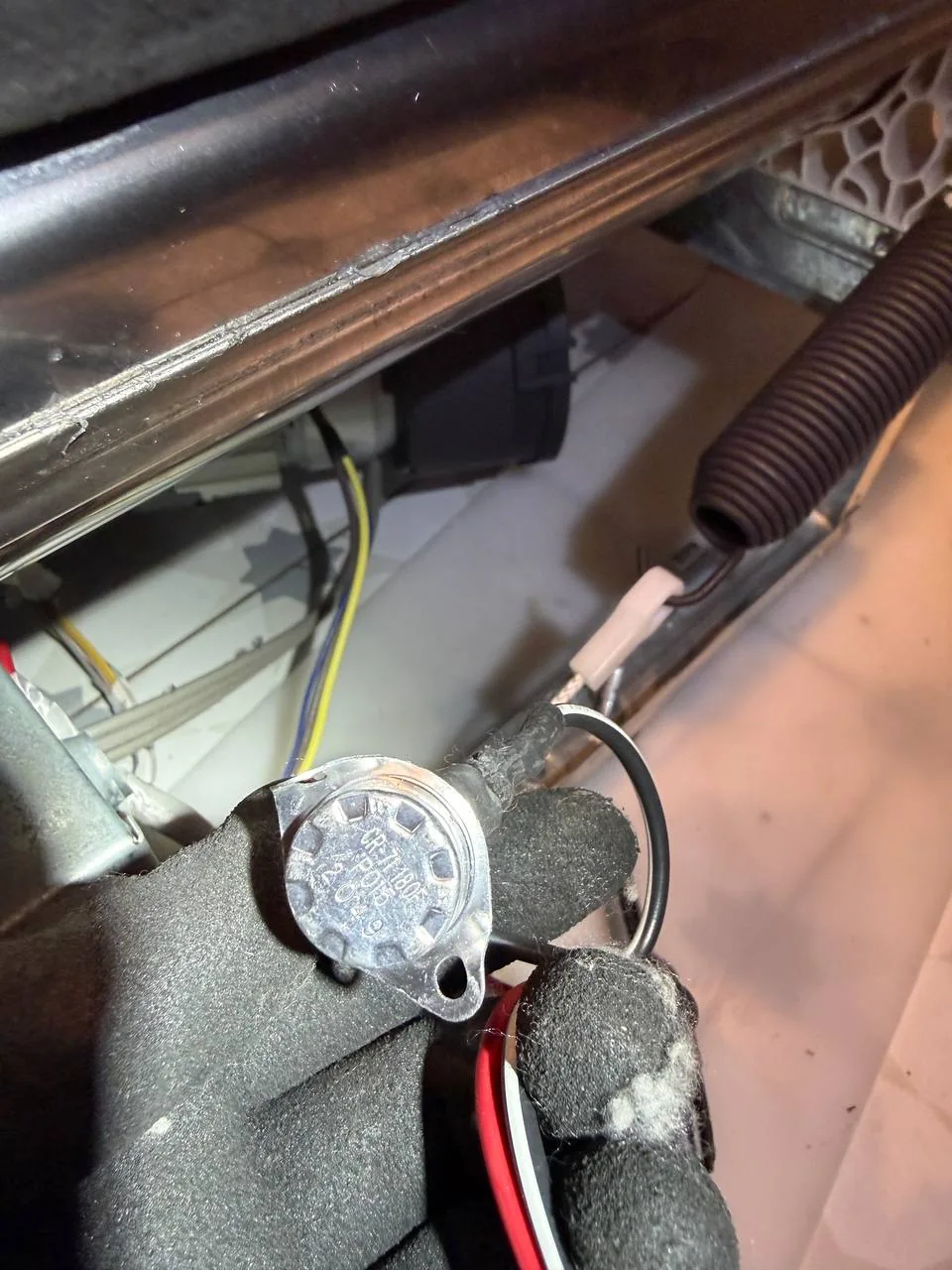

The high-limit or thermal-fuse component tested in the heater supply path during the no-heat diagnosis.
The high-limit or thermal-fuse component tested in the heater supply path during the no-heat diagnosis.

Why the temperature marking matters

The questioned high limit was marked 180°F. The discussion rejected the idea of a universally interchangeable thermostat: mounting can sometimes be adapted, but the trip temperature is part of the protection design and must match approved model information.

The source did not establish why the current high limit needed replacement, or report a completed repair. A separate refrigerator discussion in the same chat bundle was not used as evidence for this dishwasher.

The professional test order

  1. Verify the heater and its model-specific resistance specification.
  2. Test each thermal fuse and high limit in the documented circuit.
  3. Find why a protection device opened before replacing or resetting it.
  4. Verify the approved temperature rating and part for the exact model.
  5. Test the control output only after the load and safety path are understood.
Fire and electrical safety: never bypass, permanently reset or substitute a thermal protector by mounting fit alone. High-voltage heater diagnosis and the cause of an opened limit require qualified service.
