Electrical event case · Electrolux

SY CF Followed a Short During Ice Dispensing

The controls died while the condenser fan kept running. Because the failure began with an ice-maker thermistor short, the control and interface path mattered more than a generic no-cooling parts list.

Electrolux SY CE SY CF Controls Dead Communication Error
Case snapshot

The electrical event and surviving load defined the case

  • The refrigerator displayed SY CF.
  • The interface and normal operation appeared dead.
  • The condenser fan continued to run.
  • The failure began while ice was being dispensed, when the ice-maker thermistor reportedly shorted.
  • The owner of the case wondered whether the inverter had also been damaged.

A similar communication code can have a different cause on another refrigerator. This timing supports the control-communication branch but does not prove which board was damaged.

A similar symptom can have a different cause on another appliance or model.

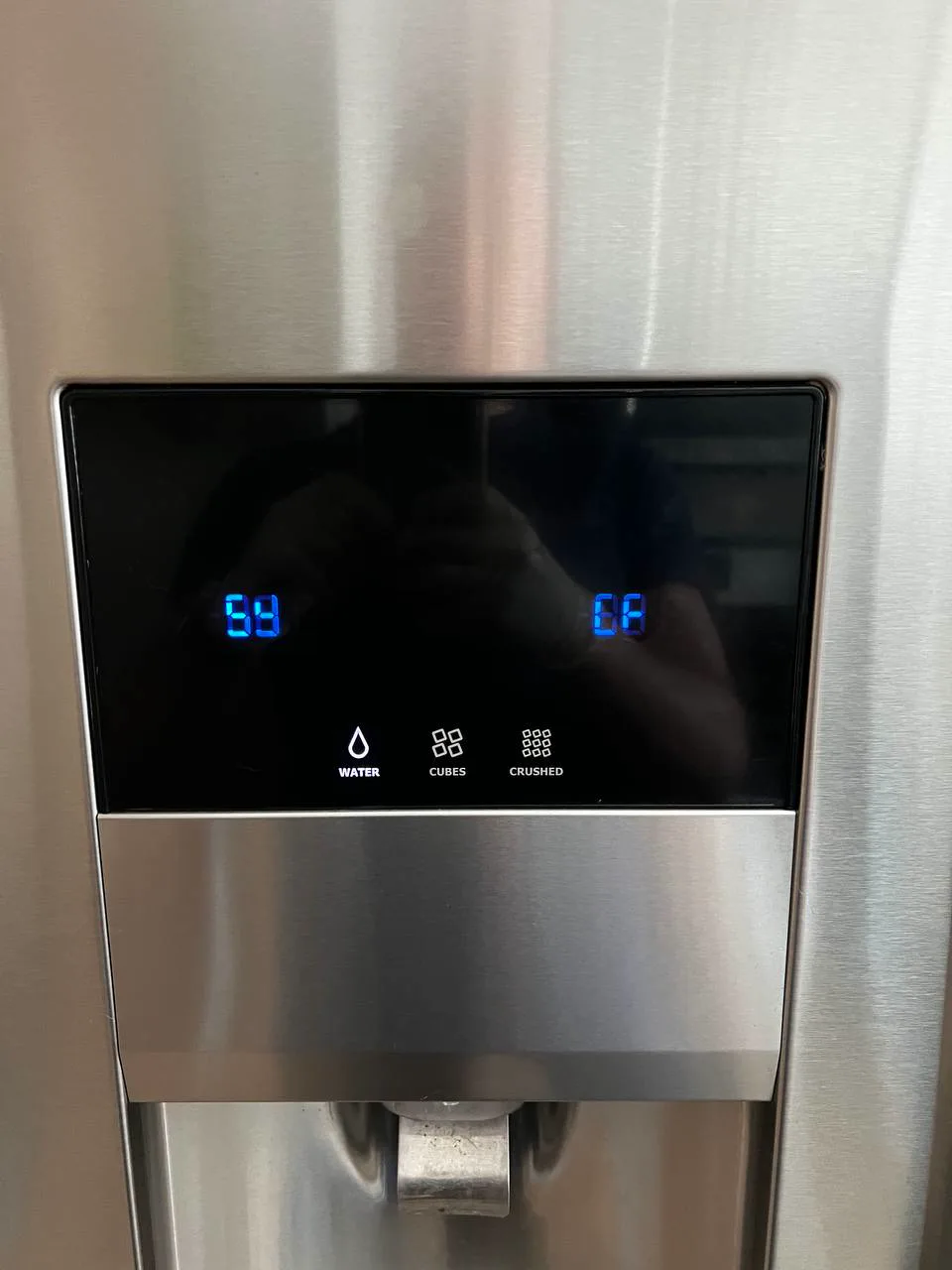

The Electrolux interface showing SY CF after the reported ice-maker thermistor short.
The Electrolux interface showing SY CF after the reported ice-maker thermistor short.
Diagnostic process

The discussion kept the main board and interface in the same fault chain

Trigger

A thermistor short preceded the shutdown

The new symptom began during ice dispensing rather than as a gradual cooling complaint.

Surviving function

The condenser fan still ran

That detail showed that the appliance was not simply disconnected from all power.

Code family

Control and communication failures were distinguished

SY CF was described as system control failure and SY CE as system communication error, keeping the board-interface link in focus.

What the evidence supports

The evidence supports damage in the control-communication path

The experts converged on the main control and interface after the shorting event, with advice that both may need evaluation or replacement. The source does not document a board test or completed replacement, so it cannot establish whether the interface, main board or both were actually damaged.

The continued condenser-fan operation is a discriminating clue, not proof that the inverter was good or bad.

What to do next

Preserve the event history before board-level diagnosis

Record the complete code sequence, which loads still run and the ice-dispenser event that immediately preceded the failure. A technician can then isolate the shorted circuit and verify board-interface communication using the exact model documentation.

Continue with comparable evidence

Cases closest to this diagnosis

Same appliance family Freezer Cold but Refrigerator Warm: Where to Look First Five real cases explain why a cold freezer and warm refrigerator can point to airflow, ice, board setup or refrigerant distribution. Same appliance family Liebherr Ice-Maker Fill Tube Kept Freezing A Liebherr ice-maker fill tube kept freezing. The case separates slow inlet-valve seepage from board, sensor and fill-line defrost branches. Same appliance family Samsung C84 with No Compressor Power After a New Board A Samsung kept C84 and no sustained compressor output after a new board. The case explains how compressor protection can make the control look …
Electrical safety: do not repeatedly reset or operate a refrigerator after a reported short circuit. Disconnect power and leave energized board, inverter and harness testing to qualified service.
