The Digits Still Flickered After the Display Was Replaced

The failure was strongest in standby and sometimes disappeared in the main menu. That pattern moved the diagnosis from the display toward its power supply.

Microwave Speed Oven psb1201nss psb1201nss/01

What the failed replacements established

  • The exact model was GE PSB1201NSS/01.
  • Digits flashed or stepped on and off, including in standby.
  • Display replacement did not help.
  • Replacing WB27X10858 also did not help.
  • Other technicians reported similar standby behavior surviving display or main-board replacement.

A similar symptom can have a different cause on another microwave. Failed display replacement is evidence for another branch, not proof of one power-board component.

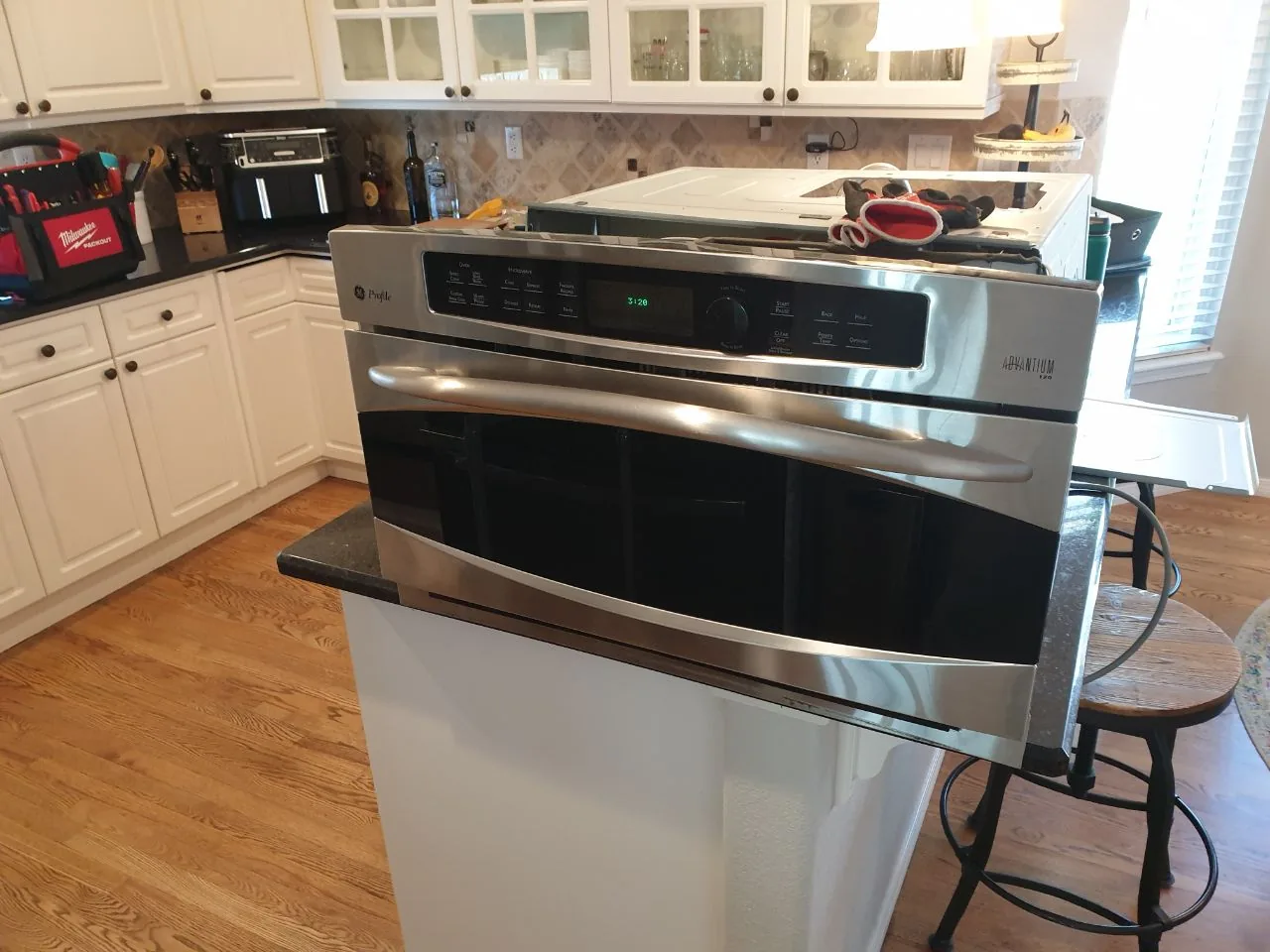

The GE Advantium removed for service; this still image identifies the unit but cannot show the intermittent digit flicker described in the thread.
The GE Advantium removed for service; this still image identifies the unit but cannot show the intermittent digit flicker described in the thread.

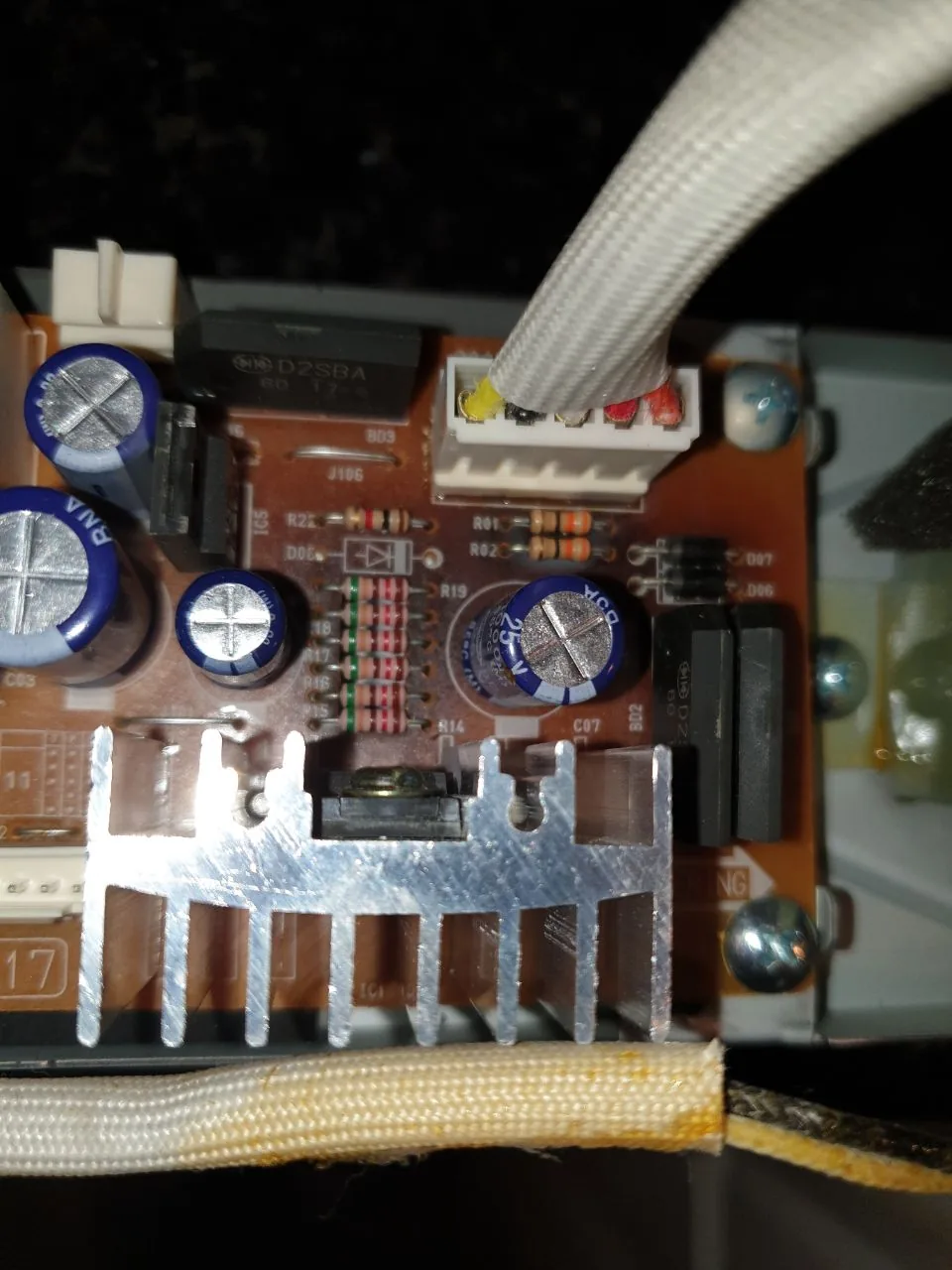

The power board proposed as the next branch after the display assembly replacement did not stop the flicker; no ripple measurement was reported.
The power board proposed as the next branch after the display assembly replacement did not stop the flicker; no ripple measurement was reported.

Why power-supply ripple became the leading hypothesis

The technician suspected unstable power after the transformer. The discussion proposed that capacitors on the power board had lost capacitance, allowing ripple or interference to disturb the display most visibly in its low-load standby state.

WB27X10861 was suggested as the board to bring for the next visit. No replacement result or capacitor measurement was reported.

Microwave high-voltage safety: unplugging does not make internal microwave circuits safe because capacitors can retain lethal energy. Cabinet access and power-board diagnosis require qualified service.
