The Code Changed After the Relay Board Was Replaced

The oven first showed U43 and then U60 after the board change. Instead of ordering another part, the technician paused to identify the exact model and reach the correct diagnostic procedure.

Dacor U43 U60 Code Changed After Board

What the sequence proves

  • U43 was present before relay-board replacement.
  • U60 appeared after the replacement.
  • The model label could not be found in the expected search.
  • The technician did not want to continue replacing parts without service-mode access.

A similar symptom can have a different cause on another Dacor platform. This code sequence does not prove that the replacement board was defective or that clearing codes would repair the oven.

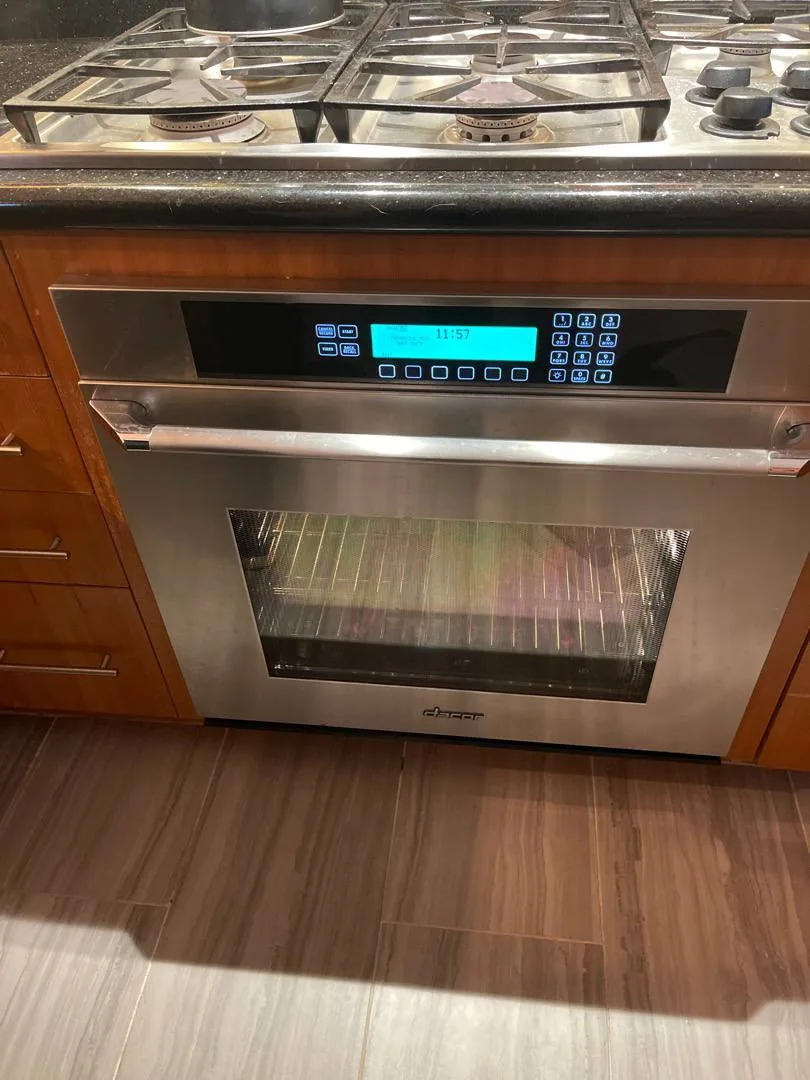

The Dacor oven and its illuminated display showing the time; the U43-to-U60 change was reported in the service discussion.
The Dacor oven and its illuminated display showing the time; the U43-to-U60 change was reported in the service discussion.

How the appliance could be identified

The expected Dacor label location discussed in the thread was behind the grille below the display. When that label was absent, the installed board part number was proposed as a clue for narrowing the model family.

A visually similar model or generic service manual was not treated as equivalent. Board revision, service-mode sequence and code interpretation can change between platforms.

What should be verified next

  1. Confirm every safe model-label location before opening the appliance.
  2. Preserve both codes and the old and new board part numbers.
  3. Verify the replacement board against the exact product revision.
  4. Use the correct service procedure to distinguish stored history from an active fault.

No final model, diagnosis or successful repair was reported in the source.

Electrical safety: board identification does not authorize energized testing. Disconnect power before internal access and do not copy service-mode or board procedures from a merely similar oven.
