The Board Had Power, but the Physical Button Contacts Were Crushed

The GFDN240GL0WW looked like a failed control board. Inspection found evidence of prior access, and restoring the damaged contacts brought the dryer back without a board.

GE gfdn240gl0ww Dead Control Panel

How the evidence changed the diagnosis

  1. The dryer did not respond to Power and the panel stayed dark.
  2. Supply was present at the panel.
  3. The button showed continuity when pressed.
  4. After the control was removed, contacts at one pin were found bent together.
  5. The contacts were straightened and the dryer worked again.

A similar symptom can have a different cause on another dryer. A dark panel can also follow a supply, harness or control failure; this case is valuable because the physical defect was seen and the result was reported.

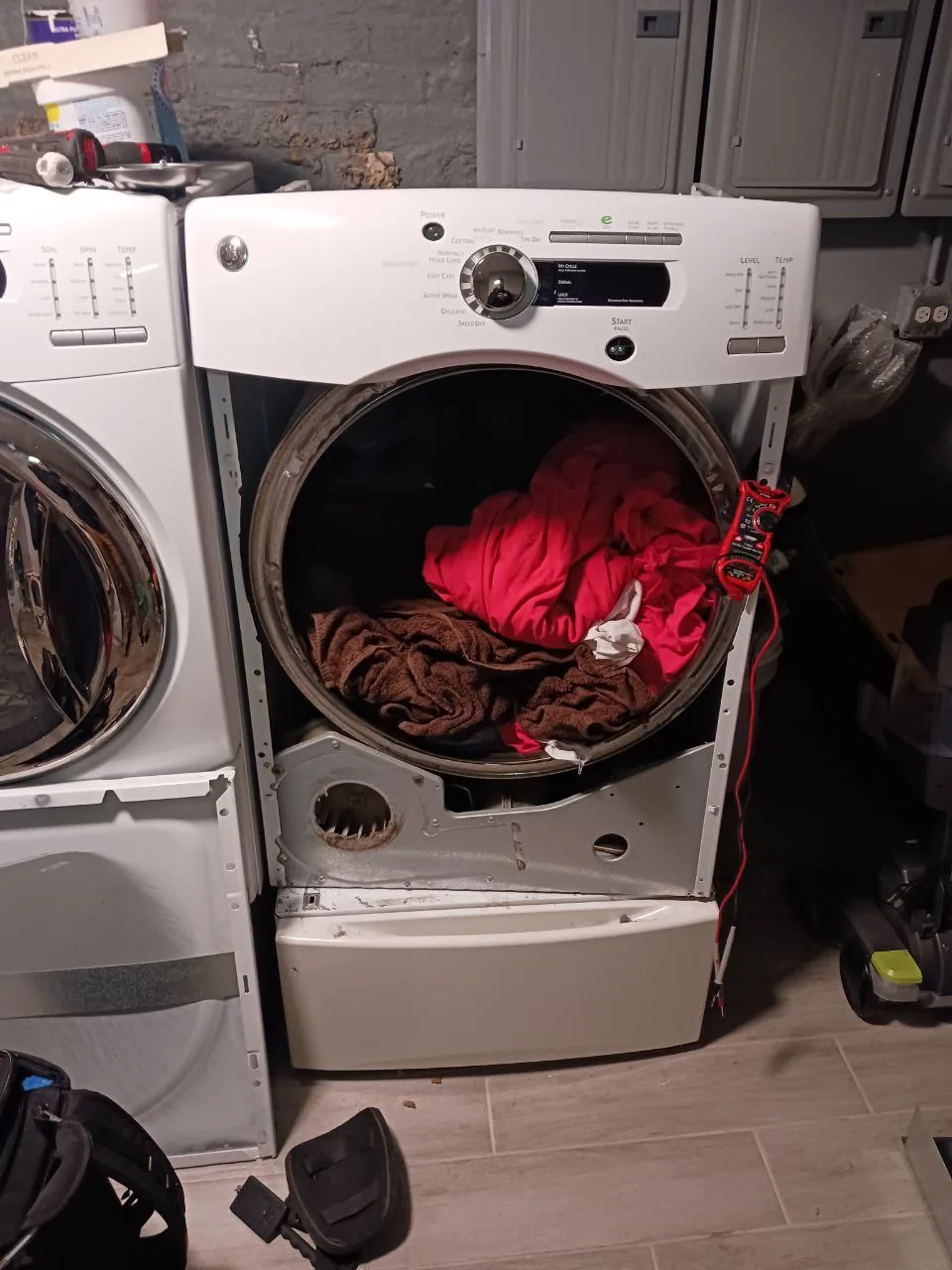

The GE dryer with its lower front panel removed and the control display dark.
The GE dryer with its lower front panel removed and the control display dark.

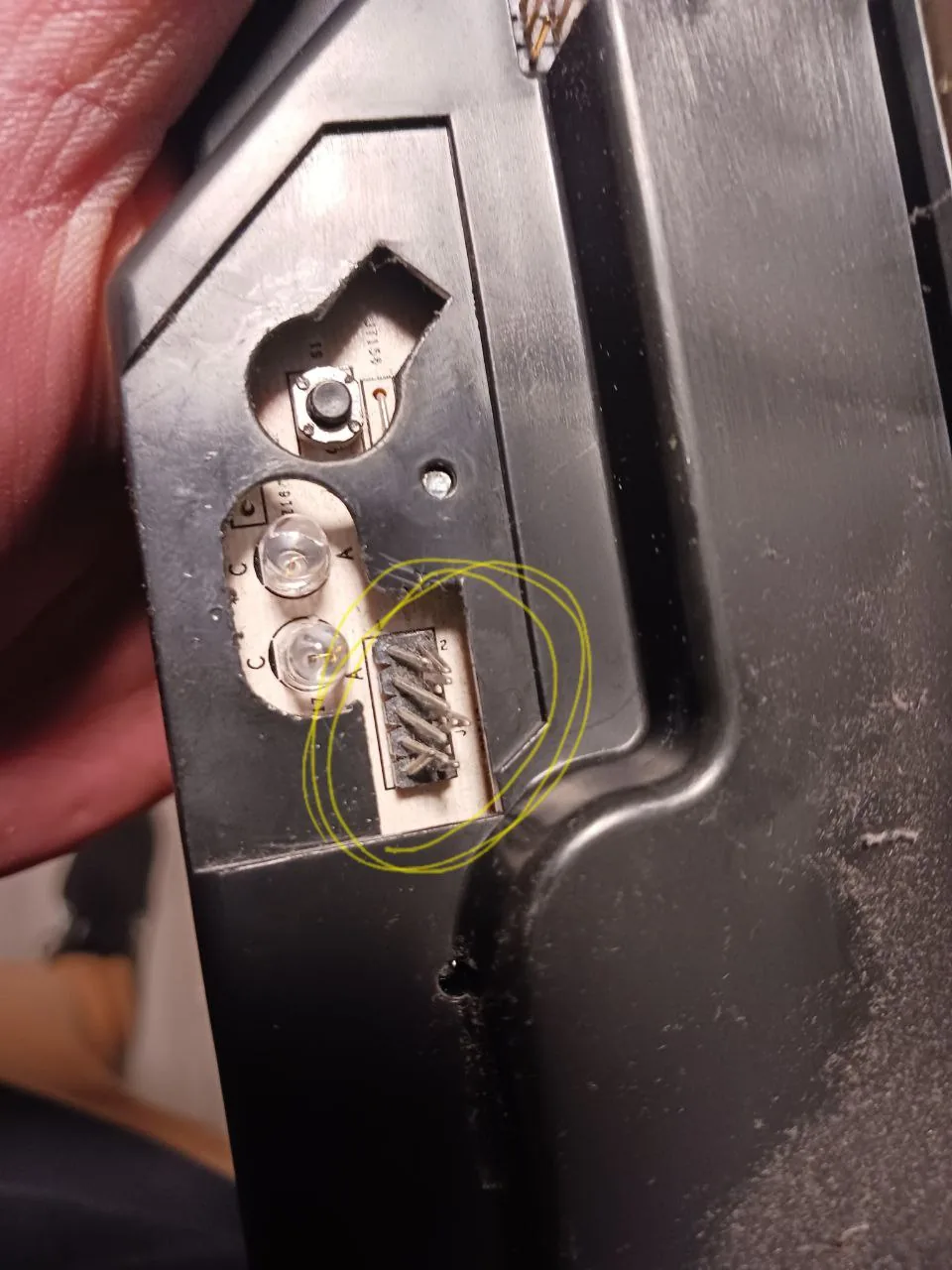

Bent contacts clustered together at the control-panel connector.
Bent contacts clustered together at the control-panel connector.

Why continuity alone was not enough

The button could close during a meter check, yet the damaged contact geometry still prevented normal panel operation. The appliance also showed signs that someone had accessed the button area previously.

That history justified a visual and mechanical inspection before committing to an expensive electronic control.

What to tell the technician

  • Whether buttons or trim are missing or misaligned.
  • Whether the panel failed after previous service or forced button use.
  • Whether any display segment flashes when Power is pressed.
Electrical safety: the successful repair required internal panel access. Disconnect the dryer before opening controls, and do not use a live panel as a button-contact test.
