Dryer Motor W10410892 Did Not Match the Old Terminal Layout

The correct next document was the instruction sheet supplied for the replacement configuration, not a guessed translation of each old wire position.

Whirlpool Replacement Motor Different Wiring

Why a legitimate replacement can look different

A superseding motor can consolidate several older assemblies and use a revised connector, harness adapter or terminal map. Physical fit does not prove that the original terminal positions carry the same functions.

A similar symptom can have a different cause on another dryer. A motor that will not run after replacement can reflect wiring, the replacement part, the start circuit or the original diagnosis.

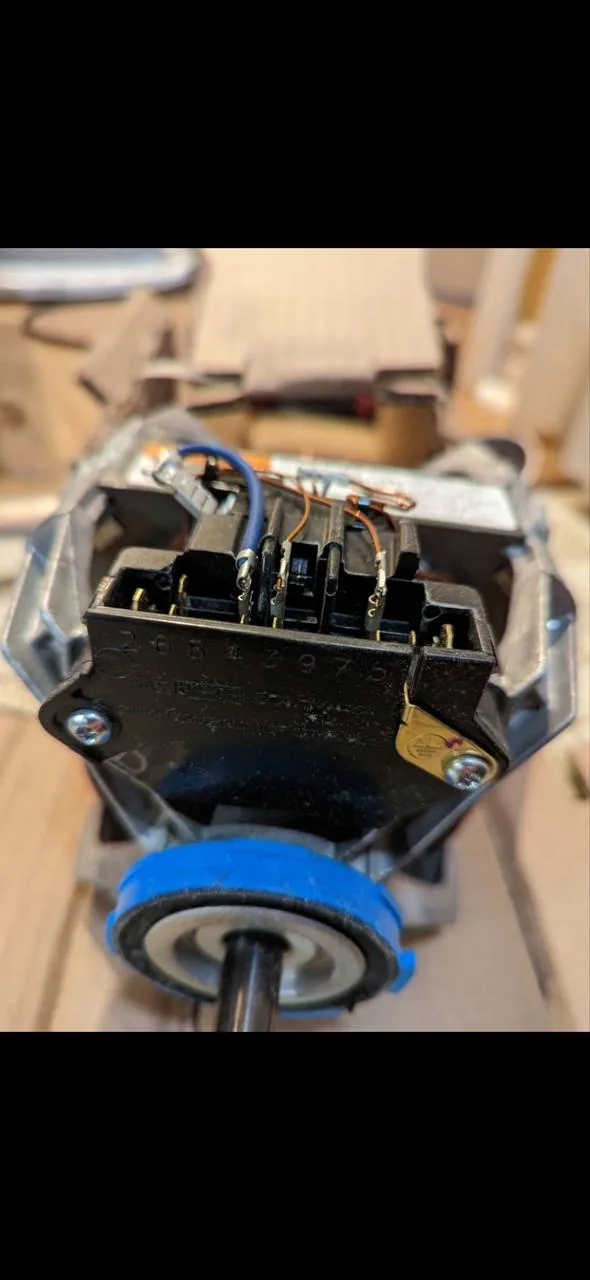

The replacement dryer motor whose terminal layout differed from the removed original.
The replacement dryer motor whose terminal layout differed from the removed original.

What resolved the documentation problem

A source-photo label identified the replacement motor as W10410892. The discussion then located instruction sheet W10408722 Rev B after a generic service manual did not show the needed replacement layout. The technician accepted that document as the missing reference.

The appliance model was not stated in the visible dialogue, so this page does not reproduce the terminal map or claim that the sheet applies beyond the exact replacement part it accompanied.

The transferable parts rule

Record the removed part number, the replacement part number, every suffix or revision and the sheet packaged with the new motor. If they conflict, stop and obtain manufacturer parts support before energizing the dryer.

Electrical and fire safety: do not guess motor terminals, move wires by color alone or energize an open dryer. An incorrect motor connection can damage controls, defeat the centrifugal heat interlock or create a fire hazard.
